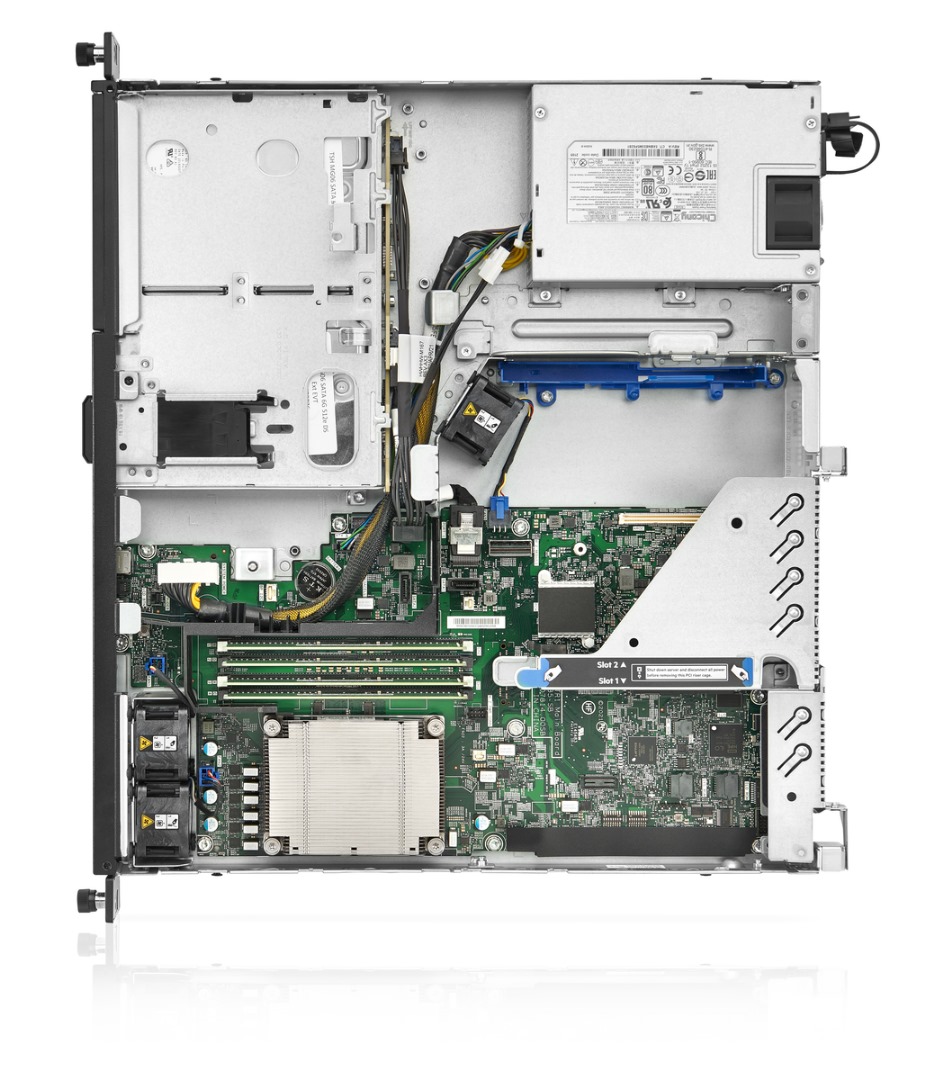

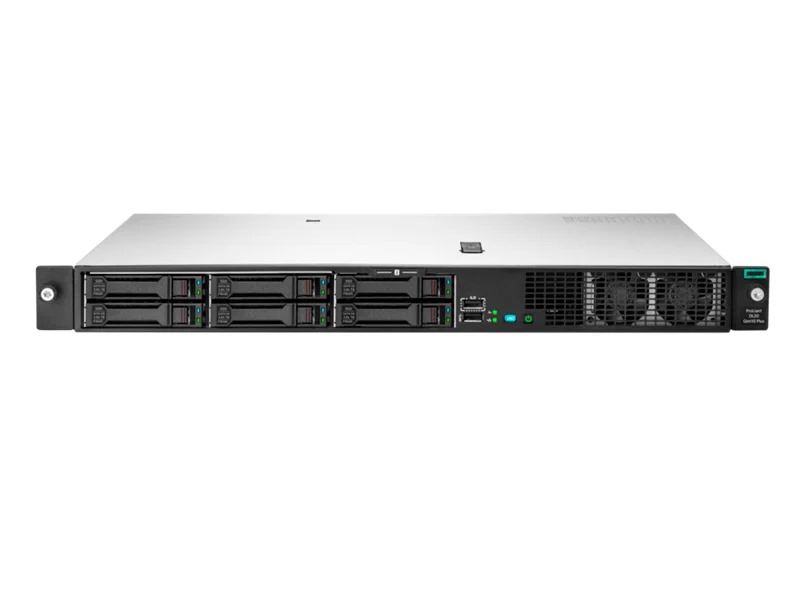

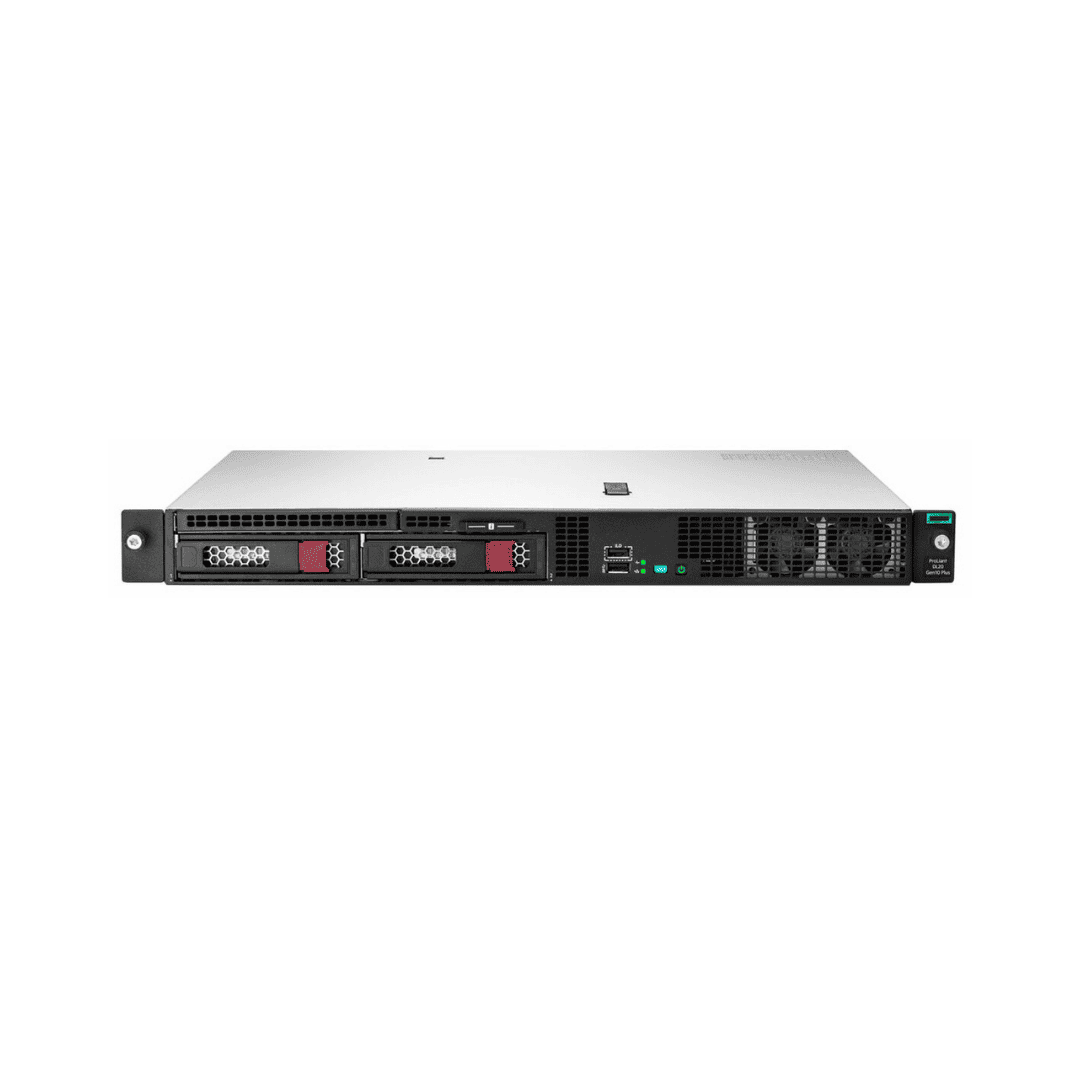

HPE ProLiant DL20 Gen10 Plus Entry Server (P44112-421) — Intel Xeon E-2314, 8GB RAM, 3.5ʺ SATA Bay, Rack-Mountable 1U, No HDD, 1-Year Warranty

The HPE ProLiant DL20 Gen10 Plus is a compact, secure, and versatile 1U rack server designed for small businesses, remote offices, and lightweight enterprise workloads. Built for performance efficiency and easy deployment, it offers a balance of reliability, scalability, and power in a shallow-depth chassis that fits even space-restricted environments.

Processor

• Model: Intel® Xeon® E-2314

• Base Frequency: 2.8 GHz

• Cores / Threads: 4 Cores / 4 Threads

• Cache: 8 MB Intel® Smart Cache

• TDP: 65 W

• Architecture: Rocket Lake

• Designed to deliver stable performance for file serving, edge workloads, security applications, and general compute tasks.

Memory

• Installed Memory: 8 GB DDR4

• Memory Type: DDR4-3200 ECC UDIMM

• DIMM Slots: 2

• Maximum Memory: Up to 64 GB

• ECC memory enhances system stability by detecting and correcting memory errors.

Storage

• Drive Bays:

  • 1 × 3.5-inch SATA Non-Hot-Swap bay

• Installed Drives: None (NO HDD included)

• Storage Interface: SATA 6 Gb/s

• Supports 3.5ʺ HDDs or SSDs depending on configuration needs.

Graphics

• Integrated GPU: Matrox G200

• Suitable for basic display output, system configuration, and server management screens.

Networking

• LAN: 1 × Gigabit Ethernet (GigE) port

• Secure, dependable single-port connectivity for small office or edge deployments.

Expansion & Connectivity

• PCIe expansion slots available for storage controllers, networking cards, or other upgrades.

• Front and rear USB ports for setup, maintenance, and external device connectivity.

Power Supply

• Factory-configured PSU supporting efficient, stable server operation.

Form Factor

• Type: Rack-mountable 1U server

• Chassis: Shallow-depth, ideal for constrained racks and edge locations.

System Management

• HPE iLO management support for remote setup, monitoring, and lifecycle management.

• LED indicators for drive and system health.

Warranty

• 1-Year Standard Warranty

  • Includes hardware replacement and support coverage.
