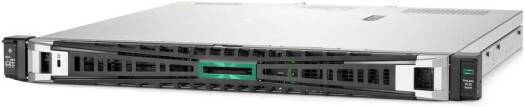

The HPE ProLiant DL20 Gen11 is a compact and highly reliable 1U rack server built for small to medium businesses, remote branches, and edge deployments that demand strong performance without heavy power or space requirements. With next-generation Intel Xeon E-2400 series processing and DDR5 memory, it offers a balanced mix of efficiency, security, and expandability.

Processor

• Model: Intel® Xeon® E-2414

• Base Frequency: 2.60 GHz

• Cores / Threads: 4 Cores / 4 Threads

• Cache: 12 MB Intel® Smart Cache

• Architecture: Intel E-2400 Series (Next-Gen entry server platform)

• Designed for dependable performance across file serving, point-of-sale systems, security workloads, and general business computing.

Memory

• Installed Memory: 16 GB DDR5

• Memory Type: DDR5-4800B-E UDIMM

• Slots: Supports multiple UDIMM slots for future upgrades

• Maximum Capacity: Up to 128 GB (depending on configuration)

• DDR5 delivers higher bandwidth and improved efficiency for faster data handling and more responsive performance.

Storage

• Drive Bays:

  • 2 × 3.5-inch Non-Hot-Plug (LFF) bays

• Installed Drives: None (NO HDD Included)

• Storage Controller: Intel VROC SATA RAID

  • Supports RAID 0, 1, 5 (depending on license and configuration)

• Ideal for users who want flexible storage configuration, whether HDDs for capacity or SSDs for speed.

Graphics

• Integrated: Basic onboard graphics for system setup and monitoring.

Networking

• LAN: Gigabit Ethernet (GigE)

• Stable and secure single-port network connectivity for enterprise and small-office environments.

Expansion & Ports

• PCIe expansion slots available for adding storage controllers, NICs, or GPUs (if required).

• Front and rear USB options for quick maintenance and peripheral access.

Power Supply

• Rating: 290W Power Supply

• Efficient and optimized for low-to-medium workload environments.

Form Factor

• Type: 1U Rack-Mountable Server

• Designed for shallow or space-restricted racks while maintaining enterprise-class reliability.

System Management

• iLO support for remote management, monitoring, firmware updates, and health checks.

• LED indicators for power, health, and drive activity.

Warranty

• 1-Year Standard Warranty
  Provides hardware support and replacement coverage.
